Main Features:
1. It is advanced and fully automatic computerized foam contour
cutting machine.
2. Can cut foam into any 2D complex shape.
3. Easy control
Technical DaTa of 2D CNC Fast Wire Cutting Machine
| TECHNICAL DATA |
| Type | DTC-F1212 | DTC-F2012 | DTC-F2512 |
| Max. Product Size | 2500*1200*1000(mm) | 2500*2000*1200(mm) | 2500*2500*1200(mm) |
| Cutting Line | 1.3~1.5mm | 1.3~1.5mm | 1.3~1.5mm |
| Control System | Industrial Computer | Industrial Computer | Industrial Computer |
| Software | D&T Profiler | D&T Profiler | D&T Profiler |
| Cutting Speed | 0~6m/min | 0~6m/min | 0~6m/min |
| Precision | ±0.5mm | ±0.5mm | ±0.5mm |
| Power | <5.5kw | <6.5kw | <8.5kw |
| Vacuum De-dust | Included | Included | Included |
| Overall Weight | 1200kg | 1500kg | 2200kg |
| Overall Dimension | 4800*2400*2380mm | 4800*3200*2800mm | 4800*3800*2800mm
|

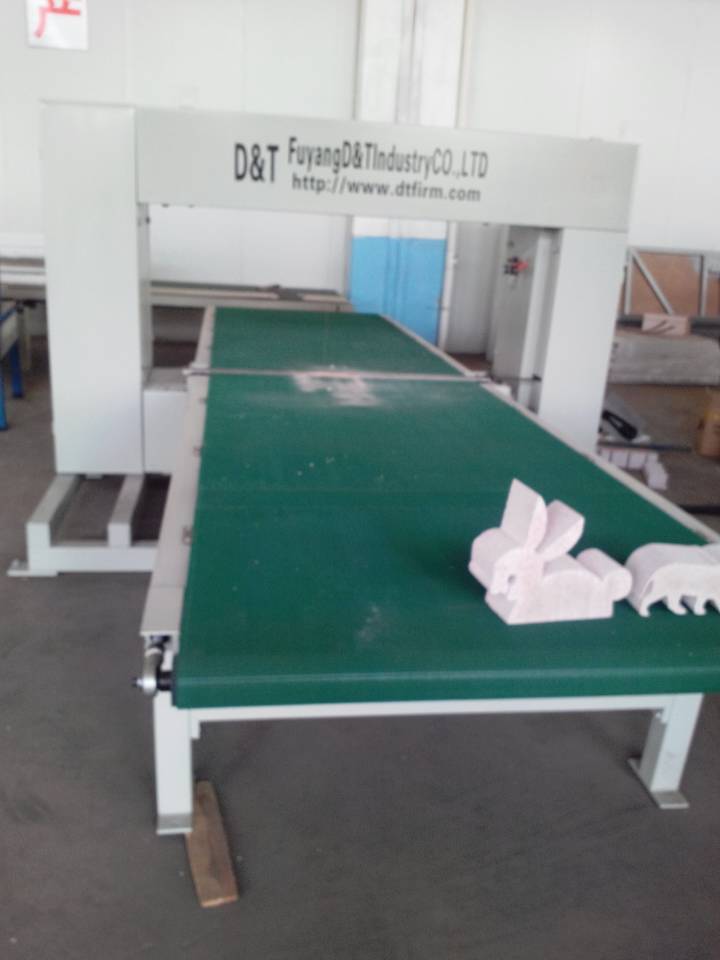

This foam cutting machine is most advanced and fully automatic
computerized foam
contour cutting machine, which can cut the various shape by
computerized system.
1. This eva foam contour cutting machine is operated by computer
and use CAD software
to design the shape for the foam block. Make full use of the foam
blocks and extremely save
the raw material(foam blocks) cost.
2. Besides CAD software, we also design another drawing software by
our engineers which is
very easy to use. Operators only need to go through simple computer literacy
training.
3. This CNC contour cutter is equipped with wireless remote control
which makes the operation
more humane convenient.
4. Equipped with high precision servo mechanism system; Rapid
cutting speed and accurate
cutting; which enhance the working efficiency.
5. 85% of dust will be collected to the bag during cutting process
and low noise.
6. Operating system: Windows XP
7. Designing software: Auto CAD / Self-developed CNC operation Software.
8. Cutting software: Foam cutting control system
Our Services
Warranty: 12 months limited warranty starting from date of delivery excluding wear parts.
shipping cost for parts to be replaced during warranty period have
to be borned by the customers.
Terms of Paypent: 30% advance payment by T/T upon signing the contract
70% covered by Confirmed Irrevocable Sight L/C
After-sale Service:
Our engineers is avilable to oversea for coordinate installation,
commissioning and training.
Cost for flight and suitable accommodation plus USD 60 per day each
person will be charged
additionally.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted and test before delivery.
