CNC Hot Wire Polystyrene Cutting Machine Styrofoam Cutter for EPS
Construction
1. Main Introduction:
1 Main frame: aluminum alloy profile connected by special joints
with
stable function and performance, reasonable structure, high
precision,
easy and convenient operation which can save time, strength and raw
material.
2 Full automatic industrial control system
3 Draw all kinds figures with CAD/CAM on computer and cut directly,
or can cut after the cutting file is run from U-disc.
4 With convenient operating interface, the machine can display the
parts to the cut,
follow the cutting path as well as their respective status
such as limits, alarm, operation conditions of each axis, etc.
5 With high strength and stability mechanical design,
the machine can work smoothly with numerical control system
and there is no need to adjust.
6 The machine has double track notion design with high precision,
which is durable.
2. Description Of 2D EPS cutting machine
Suit for: Polystyrene
Cutting line: Hot Wire
D&T series 2D EPS cutting machine is a special cutting machine,
which is for complex shapes of EPS products.
THis kind of cutter has one or sevaral cutting lines for different
production request.
All the machines are driven by the remarkable D&T Profiler
software,
which speeds up the design process and enables the operator to
obtain the best yield from the foam block.
Fast Wire Contour Cutter has perfect safe system to provide the
accident.
It includes: All Motor will stop when the safety door be opened;
Exigency button on both machine and control box for accident;
brake system when cutting line broken.
3. Technical Data of 2D EPS cutting machine
| TECHNICAL DATA |
| Type | DTC-E2012 | DTC-E3012 | DTC-E6012 |
| Max. Product Size | 2000*1300*1000mm | 3000*1300*1300(mm) | 6000*1300*1300(mm) |
| Cutting Line | 0.5~1.2mm |
| Control System | Industrial Computer |
| Software | D&T Profiler | D&T Profiler | D&T Profiler |
| Cutting Speed | 0~1.5m/min | 0~1.5m/min | 0~1.5m/min |
| Precision | ±1mm |
| Power | 13.5kw, 380v, 50hz | 14.5kw, 380v, 50hz | 14.5kw, 380v, 50hz |
| Overall Weight | 1200kg | 1500kg | 2000kg |
4. Company Information
Fuyang D&T Industry CO., LTD. Specializes in manufacturing CNC
foam Cutting machine,
polyurethane cutting machine, quilting machine,mattress spring
coiling machine and foam relation assistant
equipments. Through the research of our engineers, our cutting
machine had connected well
with the popularized CAD and achieved automation and high
efficiency, high accuracy and
makes it easy to operate.We always put the customer on the first
place and make utmost efforts
to satisfy you.We wholeheartedly look forward to developing
economic, technical and trade
cooperation with you. Products: Fast wire cutting machine, pu
cutting machine, hot wire cutting
machine, eps cutting machine, quilting machine and so on.

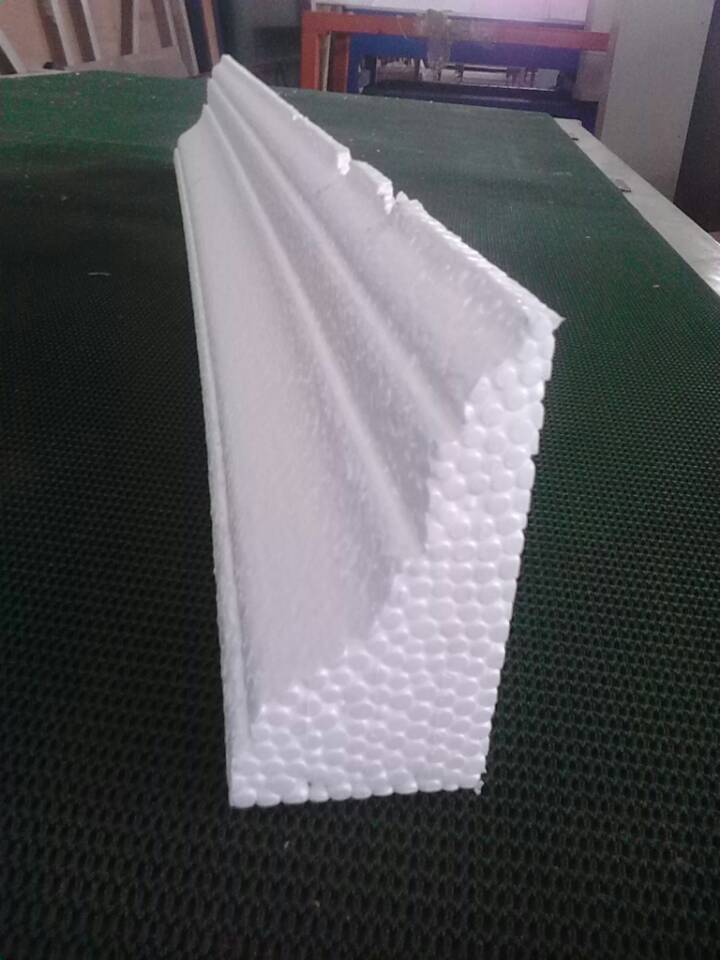

5. Samples for Cutting Product
