    Industrial Computer Controlled PU Foam Cutting Machine With High Speed Abrasive Wire

    Ask Lasest Price
    Brand Name : D&T
    Model Number : DTC-F2012
    Certification : CE
    Price : USD 18000-37000 /PC
    Payment Terms : L/C, T/T, Western Union.paypal
    Supply Ability : 20 SETS PER MONTH
    Delivery Time : 30 WORK DAYS
    • Product Details
    • Company Profile

    Industrial Computer Controlled PU Foam Cutting Machine With High Speed Abrasive Wire

    D&T CNC Dual Fast Wire Polyurethane Rigid Foam Cutting Machine CNC Pipe Cutter



    Industrial Computer Controlled PU Foam Cutting Machine With High Speed Abrasive WireIndustrial Computer Controlled PU Foam Cutting Machine With High Speed Abrasive Wire


    Technical Specifications

    ModelDTC-F2012
    Max. Block SizeLength2500mm
    Width1225mm
    Height1000mm
    Material can be Cut

    Rock Wool

    Miner Wool

    Flexible Polyurethane

    Rigid Polyurethane

    Foamglass

    Polypropylene

    Honeycomb Paperboard

    Carton

    ……

    Control DeviceIndustrial Computer
    Computer Operation SystemWindows7
    SoftwareD&T Profiler
    Acceptable File FormatsDXF/DWG
    Number of Cutting WireDual Wire (Horizonal +Vertical)
    Cutting Wire Length~8500mm (Should be confirmed by maker by machine)
    Cutting Wire Diameter0.8~2.0mm
    Flying Wheel Diameter300mm
    Mainly MotorABB, 3kW*2pcs
    Running Speed of the wheel2860rpm
    InverterPanasonic, for 3kW motor
    Cutting Speed0~6m/min
    Precision±0.5mm
    Total Power11kW, 400/240V, 50Hz
    Gross Weight2800kg
    Overall Dimension5500*5500*2600 mm


    Suit for: flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
    Fast Wire Contour Cutter

    Cutting line: Fast cutting wire

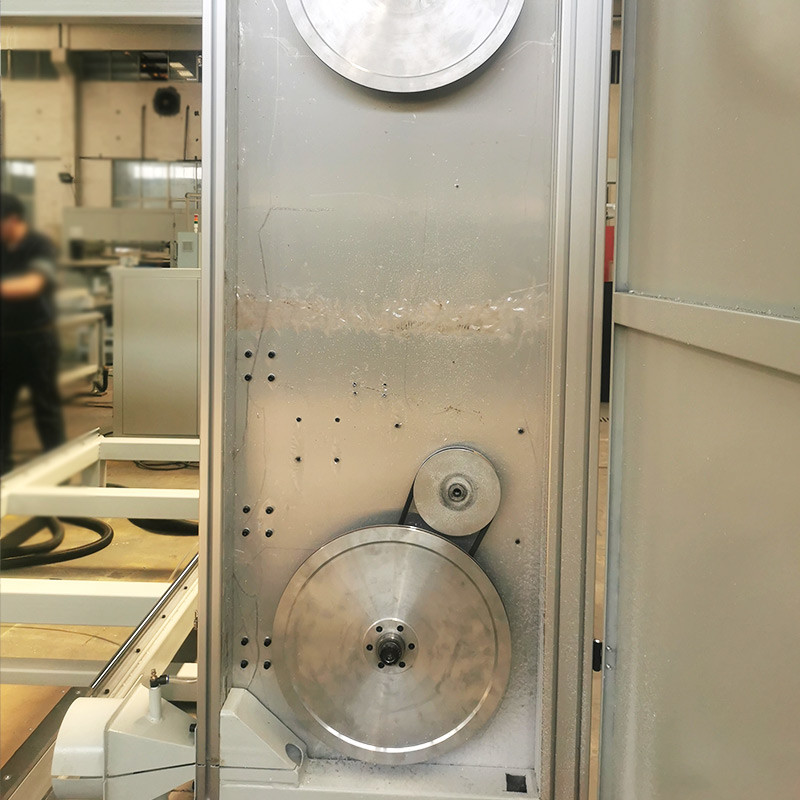

    The D&T Fast wire Contour Cutter is a versatile machine, which uses an abrasive wire moving at high-speed to enable it to cut complex 2D
    shapes from a wide range of rigid and flexible foams. These include flexible and rigid PU, EPS, PE, PVC, EVA, Rock wool and phenol foams.
    All the machines are driven by the remarkable D&T Profiler software, which speeds up the design process and enables the operator to obtain
    the best yield from the foam block.
    Fast Wire Contour Cutter has perfect safe system to provide the accident. It include: All Motor will stop when the safety door be opened;
    Exigency button on both machine and control box for accident; brake system when cutting line broken.


    Industrial Computer Controlled PU Foam Cutting Machine With High Speed Abrasive WireIndustrial Computer Controlled PU Foam Cutting Machine With High Speed Abrasive WireIndustrial Computer Controlled PU Foam Cutting Machine With High Speed Abrasive WireIndustrial Computer Controlled PU Foam Cutting Machine With High Speed Abrasive WireIndustrial Computer Controlled PU Foam Cutting Machine With High Speed Abrasive Wire
